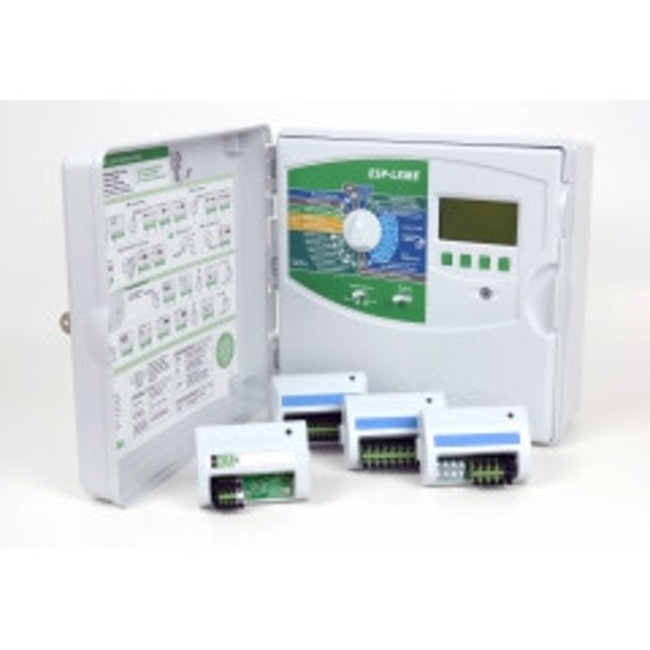

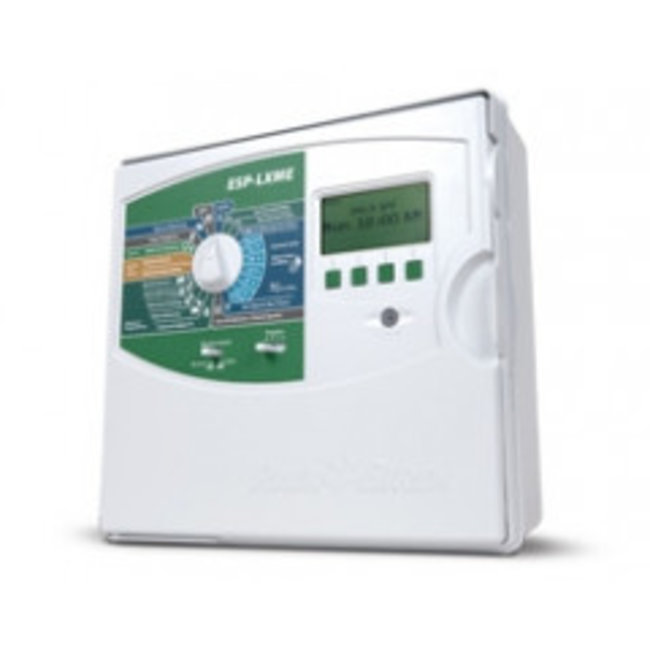

- The ESP-LXMEÂ enhanced Controller provides optional flow sensing and water management.

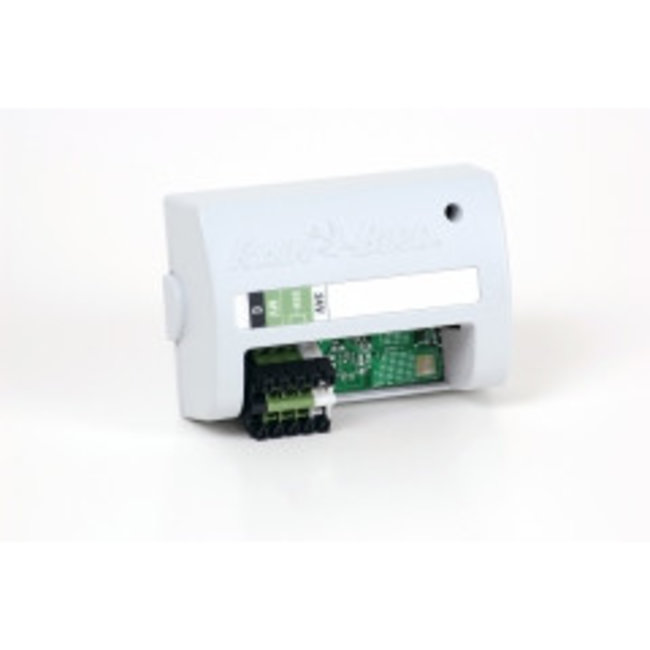

- Modular design for ultimate versatility - Capacity from 8 to 48 stations. Station modules are available in 4-, 8-, and 12-station models.
- Extra-Simple Programming user interface.
Features:
- Large LCD display with easy to navigate softkey user interface.
- Weather Sensor input with override switch.
- Master valve/pump start circuit.
- 6 user-selectable languages.
- Non-volatile (100- year) program memory.
- Standard 10kVÂ surge protection.
- Front panel is removable and programmable under battery power.
Programming Features
- SimulStationsâ„¢ are programmable to allow up to 5 stations to operate at the same time.
- Cycle+Soakâ„¢ by station.
- Rain Delay.
- 365-Day Calendar Day Off.
- Programmable Station Delay by program.
- Normally Open or Closed Master Valve programmable by station.
- Weather Sensor programmable by station to prevent or pause watering.
- Station timing: 0 min to 12 hrs.
- Delay between stations : from 1 sec to 9 hours.
- Seasonal Adjust:Â 0% to 300% (16 hrs maximum station run time)
- 4 independent programs (ABCD)
- ABCD programs can overlap.
- 8 start times per program.
- Program Day Cycles include Custom days of the week, Odd, Odd31, Even, & Cyclical dates.
- Manual station, program, test program.
Water Management Features
Optional Flow Smart Moduleâ„¢ adds flow sensing functionality:
- The Flow Smart Module sensor input accepts a direct input from a flow sensor with no flow scaling device required.
- The FloWatch Learn Flow Utility learns the normal flow rate of each station. FloWatch compares the current real-time flow rate to the learned rate and takes user defined actions if high flow, low flow, or no flow is detected. FloWatch automatically determines the location of the flow problem and isolate the problem by turning off the affected station or master valve. FloWatch is compatible with both normally closed and open master valves.
- A Manual Master Valve Water Windows is provided to coordinate day time manual watering with the flow sensing. This Water Windows offers programmable days of the week and manual watering additional.
Dimensions:
- Width:Â 36,4 cm
- Height:Â 32,2 cm
- Depth:Â 14,0 cm
